Clamp torque system

The system is divided into a straight pull clamp torque system and a force arm clamp torque system.

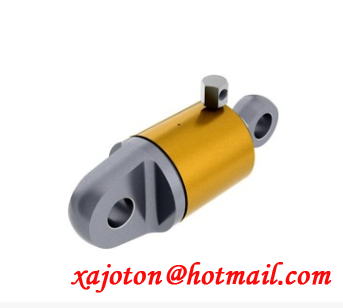

The working principle of the instrument is to accurately display the torque value during the working process of the equipment through the conversion of sensor pressure or tension. It is mainly used in oilfield rig123.net' target='_blank'>drilling and workover operations. This watch is equipped with a 6-inch adjustable damping valve, which can reduce the up and down vibration of the torque when the equipment is working, avoiding the pointer swinging too large and causing misjudgment. It consists of a clamp torque sensor, a lifting ring, a high-pressure rubber tube, a 6-inch tongs torque meter with a damping valve, an aluminum hand pump, and a kit. This instrument displays torque pressure values ​​and is mainly used in rig123.net' target='_blank'>drilling rigs, workover rigs, and well boring machines. It is especially suitable for various types of hydraulic tongs.

CTP-straight pull clamp torque system

1. Suitable for various models of manual tongs and hydraulic tongs

2. This set of tongs torque system maximizes the life of the drill string

3. The maximum tensile force can reach 25.000 pounds, and other pressure unit pull values ​​can also be provided.

4. Accurately detect the torque and drag torque of all drill joints, drill collars and drill string components

CTT-force arm clamp torque system

1. Provide tension and pressure sensor combination for various types of power tongs

2. Rugged caliper torque sensor to ensure the life of the entire system

3. The meter indicates the precise torque at each joint to ensure uniform and correct docking of the drill string

4. Maximum torque value up to 120.000 ft., other pressure unit torque values ​​are also available
